UV test solution

NEW Type

UV-int159

+ UV-intensity :mW/cm2
+ UV-dose :mJ/cm2
+ Temperature:0-120¡ãC

UV-int160

+ UV-intensity :mW/cm2
+ UV-dose :mJ/cm2
+ Temperature:0-120¡ãC
+ USB ComPort
+ Graphic chart on computer




UV-integrator
Designed & Manufactured by UV-int

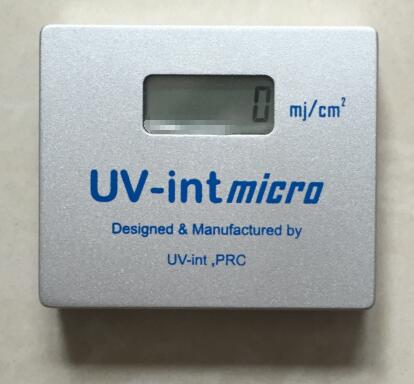

 UV-intMicro



The UV-IntMicro is a high quality UV measuring instrument. It is used to measure UV energy of
different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying processes.
Small size, heavy duty pass-through Integrator with a diameter of 90 mm. It is reliable and simple to use.

Technical Data:
Spectral range:
M36£º 250-410nm Max:365nm

M42£º 350-460nm max:410nm


Measuring range: 0 to 5,000 mW/cm2
Display: 6-digit LCD
Display range: 0 to 999,999 mJ/cm2
Power source: long life 3.6 V Lithium Battery
Power consumption: 100 uA
Battery service life: 10,000 hrs
Dimensions: 54X44X12(H)£¨mm£©
Weight: approx. (100 grs.)
Temperature range: 0 to 45?Centigrade
Heat protection: Heat shield on back plate
Base Accuracy: +5 %

on/off

Auto off 3-8Minutes

UV-intMicro

UV-intMicro 56X48X12£¨mm £©

M36£º 250-410nm Max:365nm (ST)

M41£º 350-460nm max:410nm



While on the conveyer belt, the UV-intMirco can withstand max. 110¡ã Centigrade for up to 10seconds.
