UV test solution

NEW Type

UV-int159

+ UV-intensity :mW/cm2
+ UV-dose :mJ/cm2
+ Temperature:0-120¡ãC


UV-int160

+ UV-intensity :mW/cm2
+ UV-dose :mJ/cm2
+ Temperature:0-120¡ãC
+ USB ComPort
+ Graphic chart on computer





UV-integrator
Designed & Manufactured by UV-int

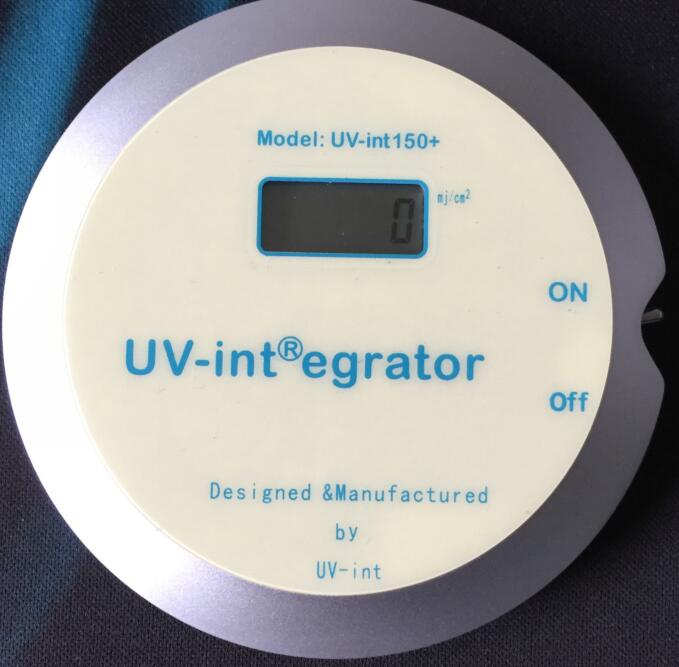

 UV-int150+

The UV-Integrator 150+ is a high quality UV measuring instrument. It is used to measure UV energy of
different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying processes.
Small size, heavy duty pass-through Integrator with a diameter of 90 mm. It is reliable and simple to use.

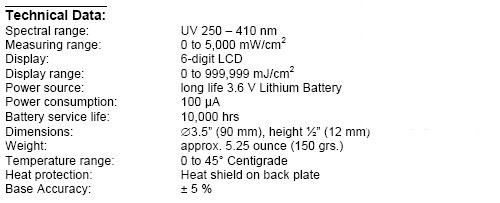

Technical Data:
Spectral range: UV 250- 410 nm
Measuring range: 0 to 5,000 mW/cm2
Display: 6-digit LCD
Display range: 0 to 999,999 mJ/cm2
Power source: long life 3.6 V Lithium Battery
Power consumption: 100 uA
Battery service life: 10,000 hrs
Dimensions: (90 mm), height (12 mm)
Weight: approx. 5.25 ounce (150 grs.)
Temperature range: 0 to 45?Centigrade
Heat protection: Heat shield on back plate
Base Accuracy: +5 %

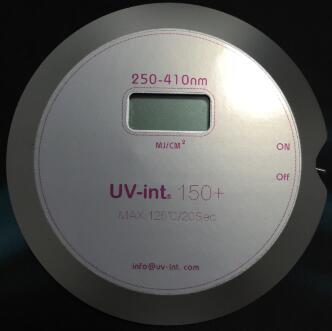

150plus

UV-integrator150+

While on the conveyer belt, the UV-Integrator 150+ can withstand max. 125¡ã Centigrade for up to 20seconds.
