Product Overview
The UV-int150 Medidor de Energía UV Estándar is a high-quality UV energy measuring instrument. Used to measure UV energy of UV curing equipment, the main sensor is located on the back of the meter.
The measurement range is 250~410 nanometers, and measurements can be directly read from the display on the front of the energy meter (unit: millijoules per square centimeter).
The power source is a 3.6V lithium battery, which uses a special energy-saving circuit and can last approximately 10,000 hours.
Especificaciones Técnicas
| Spectral Range | 250-410nm |
|---|---|
| Measuring Range | 0-10000 mW/cm² |
| Display Range | 0-999,999 mJ/cm² |
| Accuracy | ±5% |
| Dimensions | 90mm diameter × 12mm height |
| Weight | Approx. 150g |
| Power Supply | 3.6V Lithium Battery |
| Operating Temperature | Heat resistant up to 110°C |
| Housing | Aluminum Alloy Shell |
| Battery Life | Approx. 10,000 hours |
Product Features

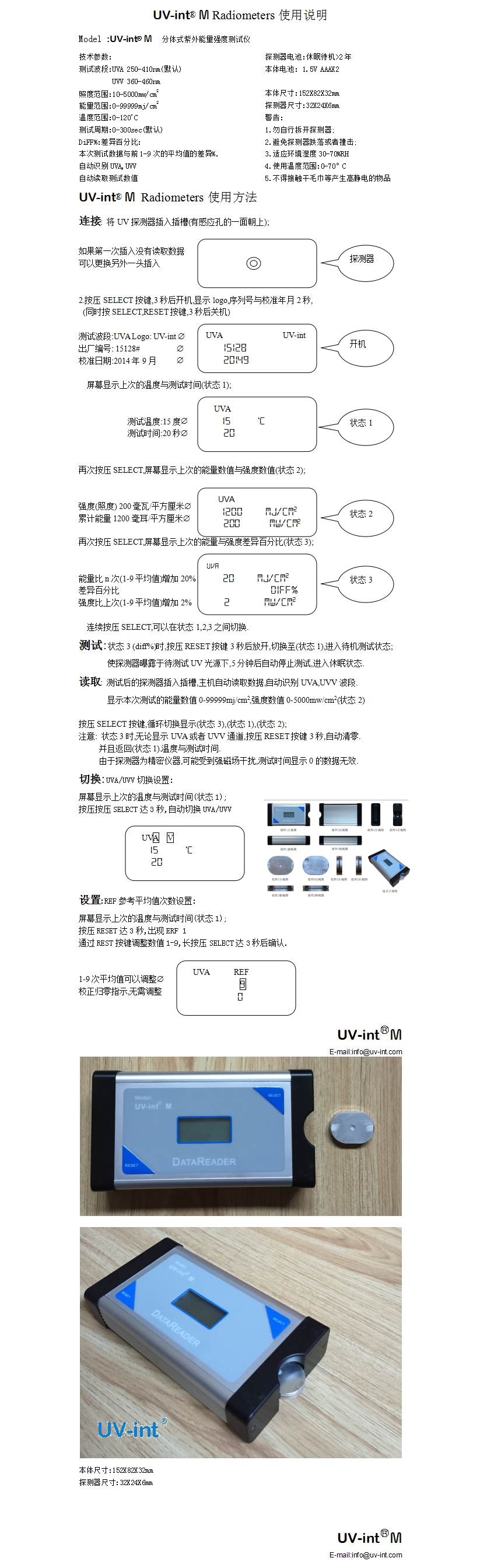

Operating Instructions
Power On
Turn on the ON switch, the LCD display will show zero
Position
Place the UV energy meter near the UV lamp source, ideally with its back side facing the lamp (since the sensor is on the back). Extend the exposure time as needed
Read
When the display shows a measurement, for example 800 mJ/cm²
Save/Turn Off
Turn off the meter (OFF), or reset the display to zero
Precautions
- Do not stare directly or indirectly at UV lamps - ensure no part of your body is exposed to direct UV light
- This UV energy meter can withstand high temperatures - up to 110°C on conveyor belts for no more than 10 seconds
- Regular calibration is recommended to ensure measurement accuracy
