Product Introduction

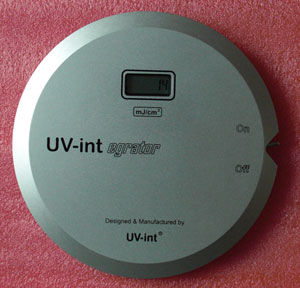

UV-int140 Standard UV Energy Meter is a high-quality UV energy measurement instrument specifically designed for measuring UV energy in UV curing equipment. The energy meter features a large size design with a diameter of 140mm and height of 13mm, making it easy to operate and read.
The product incorporates an innovative fluorescent warning design for the sensor window. Under UV radiation, the sensor window glows, reminding users of the sensor position and safety protection. This design was first released on August 12, 2010, becoming an industry innovation highlight.
Certified by authoritative metrology calibration reports from China National Institute of Metrology, ensuring measurement accuracy and reliability. Suitable for precise energy testing in UV curing, UV coatings, UV adhesives and other UV processes.
Technical Specifications
| Test Intensity Range | 0-10000 mw/cm² (upgraded to 2x original capacity) |
|---|---|
| Display Energy Range | 0-999999 mj/cm² (6-digit LCD display) |
| Product Dimensions | Diameter: 140mm, Height: 13mm |
| Spectral Measurement Range | 250-410 nanometers |
| Heat Resistance | Maximum 110℃ (not exceeding 10 seconds on conveyor belt) |
| Operation Switch | ON/OFF position |
| Product Weight | Approximately 350 grams |
| Power Supply | 3.6V lithium battery |
| Power Consumption | 100μA, usable for approximately 10,000 hours |
| Housing Material | Aluminum alloy housing |
Product Features
Large Size Design
140mm diameter large size, easy to operate and read display
Fluorescent Warning Design
Sensor window glows under UV radiation, reminding users of safety
High Precision Measurement
High test accuracy, 6-digit LCD display, ensuring accurate results
High Temperature Resistance
Can withstand high temperatures, not exceeding 10 seconds on conveyor belt, resistant to 110℃
Low Power Consumption
Power consumption only 100μA, battery usable for about 10,000 hours
Authoritative Calibration
Certified by China National Institute of Metrology, ensuring measurement accuracy
Innovative Fluorescent Warning Design
Innovative Fluorescent Warning Design for Sensor Window is an important feature of UV-int140:
- • Sensor window glows under UV radiation, reminding users of sensor position
- • Glows when entering and exiting UV oven with residual UV light
- • Reminds customers that this is the sensor window and should not be contaminated
- • The brighter the UV intensity, the brighter the glow, warning against excessive UV leakage
- • Effectively prevents safety hazards and improves operational safety
Note: Blue printed version has been discontinued!
Installation & Operation
Power On
Turn ON switch, LCD display shows zero
Placement Position
Place UV energy meter near UV lamp source, back facing the lamp
Start Testing
Extend exposure time appropriately until measurement appears on display
End Testing
Turn OFF energy meter switch, or reset display value to zero
Important Notes
Important Safety Warnings
- Do not look directly at UV lamp or through refraction/reflection, ensure no body parts are exposed to direct UV radiation
- This UV energy meter can withstand high temperatures, not exceeding 10 seconds on conveyor belt, resistant to 110℃
- Ensure factory temperature remains below 70℃
- Regular calibration to ensure measurement accuracy
- Store properly and avoid strong impacts
Warning: All online links that hide or alter trademark LOGO are counterfeit products!
Application Areas
UV-int140 UV Energy Meter is widely used in the following fields:
Electronics Manufacturing
UV adhesive curing and quality inspection for electronic components
Printing Industry
UV ink curing and print quality monitoring
Coatings Industry
UV coating curing and coating quality inspection
Medical Equipment
UV disinfection and curing testing for medical devices
Scientific Research
UV process research and material testing in laboratories
Industrial Automation
UV process monitoring on automated production lines
