UV test solution

NEW Type

UV-int159

+ UV-intensity :mW/cm2
+ UV-dose :mJ/cm2
+ Temperature:0-120C


UV-int160

+ UV-intensity :mW/cm2
+ UV-dose :mJ/cm2
+ Temperature:0-120C
+ USB ComPort
+ Graphic chart on computer





UV-integrator
Designed & Manufactured by UV-int

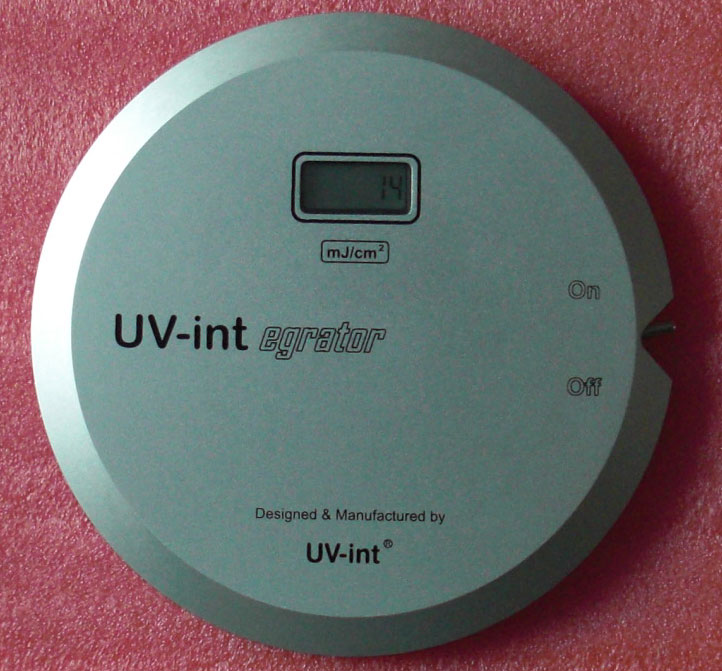

 UV-int140



The UV-Integrator 140 is a high quality UV measuring instrument. It is used to measure UV energy of
different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying processes.
Size, heavy duty pass-through Integrator with a diameter of 140 mm. It is reliable and simple to use.

UV-int 140

Technical Data:
Spectral range: UV 250- 410 nm
Measuring range: 0 to 5,000 mW/cm2
Display: 6-digit LCD
Display range: 0 to 999,999 mJ/cm2
Power source: long life 3.6 V Lithium Battery
Power consumption: 100 uA
Battery service life: 10,000 hrs
Dimensions: (140 mm),13 mm)
Weight: approx. (350 grs.)
Temperature range: 0 to 75 Centigrade
Heat protection: Heat shield on back plate
Base Accuracy: +5 %

UV-integrator140

While on the conveyer belt, the UV-Integrator 140 can withstand max. 110 Centigrade for up to 10seconds.
